High-Pressure Micro Water Pump | OEM & Custom Solutions
Pinmotor supplies high pressure micro water pumps for compact OEM equipment that needs stronger liquid pressure, stable delivery, and controlled water output. Pressure options can be matched from 30–130 PSI, with voltage, flow rate, suction height, connector, automatic pressure switch, and material options selected according to the customer’s water path.
How to Choose the Right Pressure Range
For high pressure micro water pump projects, pressure should be confirmed before voltage, size, or connector type. Different water paths require different PSI levels. If the pressure is too low, the spray, RO membrane, or cleaning output may not work properly. If the pressure is too high, tubing, seals, and connectors may face leakage risk.
| Pressure Level | PSI Range | Bar Range | Typical Use |
|---|---|---|---|
| Low Pressure | 30–45 PSI |
2–3 Bar | Sprayers, misting systems, small rinsing modules |
| Medium Pressure | 45–70 PSI | 3–5 Bar | RO systems, beverage equipment, chemical spraying |
| High Pressure | 70–100 PSI |
5–7 Bar | Pressurized transfer, equipment rinsing, resistant water paths |
| Maximum Micro Pressure | 100–130 PSI |
7–9 Bar | Compact washing, agricultural spraying, booster systems |
Selection Note:
Micro high pressure water pumps are designed for compact OEM equipment with pressures up to 130 PSI. They are distinct from household pressure washers, which often operate above 2000 PSI. Ensure the nozzle size, tubing length, liquid type, working cycle, and target pressure are confirmed before selecting a pump model.
Product Comparison – Standard vs High Pressure Micro Water Pumps
Use this comparison to choose between standard pressure and higher pressure micro water pump options. If your device only needs stable liquid transfer, 310 is usually enough. If the project requires stronger pressure, longer suction, or higher lift, 370 is the better starting model for sample testing.

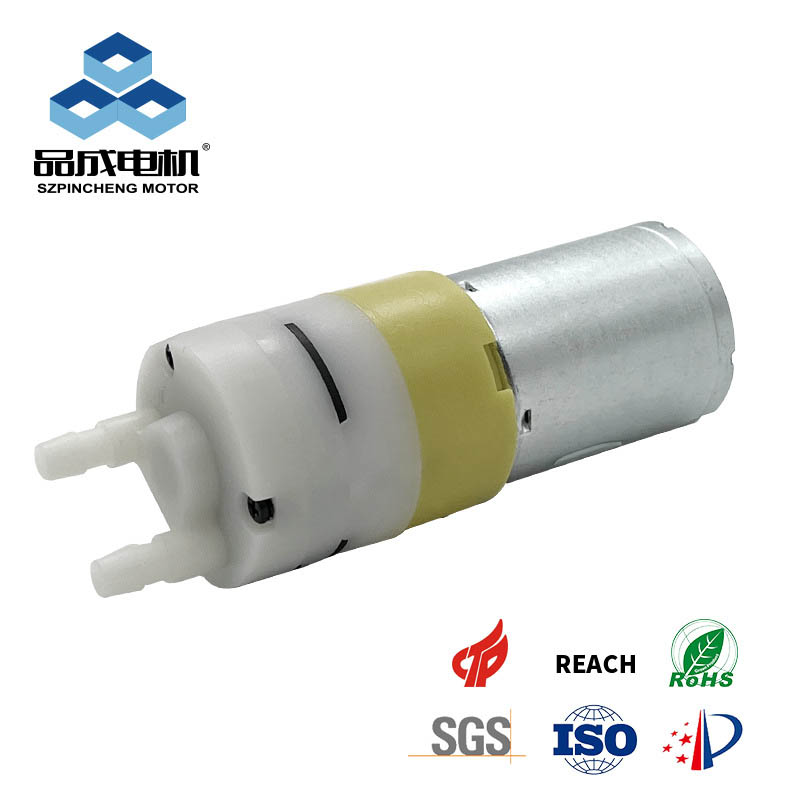

| Parameter | 310-XA Standard Pressure Series | 370-XA High Pressure Booster Series |
|---|---|---|
| Rated Voltage | DC 3V / 6V / 9V / 12V | DC 3V / 6V / 9V / 12V / 24V |
| Rated Current | ≤1200mA / ≤600mA / ≤400mA / ≤300mA | ≤1200mA / ≤600mA / ≤400mA / ≤300mA / ≤150mA |
| Power | 3.6W | 3.6W |
| Max Pressure | 10–70 PSI | 30–130 PSI |
| Flow Rate | 0.3–0.8 LPM | 0.3–0.8 LPM |
| Life Test | ≥200h continuous | ≥500h continuous |
| Pump Head | ≥2m | ≥5m |
| Suction Head | ≥2m | ≥5m |
| Weight | Approx. 40g | Approx. 60g |
| Suitable Products | Sprayers, water dispensers, air conditioning drainage pumps, medical equipment, standard booster modules | Portable oral irrigators, portable coffee machines, compact high-pressure liquid systems |
Selection Note:
Choose the pump by pressure demand, suction height, tubing length, nozzle resistance, and working cycle. For unsure projects, send us your target PSI, voltage, flow rate, tubing size, liquid type, and application. Pinmotor can recommend a suitable model for sample testing.
Application Scenarios: Where Brushless Matters
High pressure micro water pumps are used when the device needs pressure output, not only liquid transfer. For OEM projects, the pump should be selected according to required PSI, nozzle size, tubing length, liquid type, and working cycle.
Spraying & Atomization
For agricultural sprayers, humidification modules, and chemical spraying devices, the pump must provide enough pressure to push liquid through the nozzle and create stable atomization. A pressure range of 30–80 PSI is commonly used for compact spraying systems, depending on nozzle size and liquid viscosity.

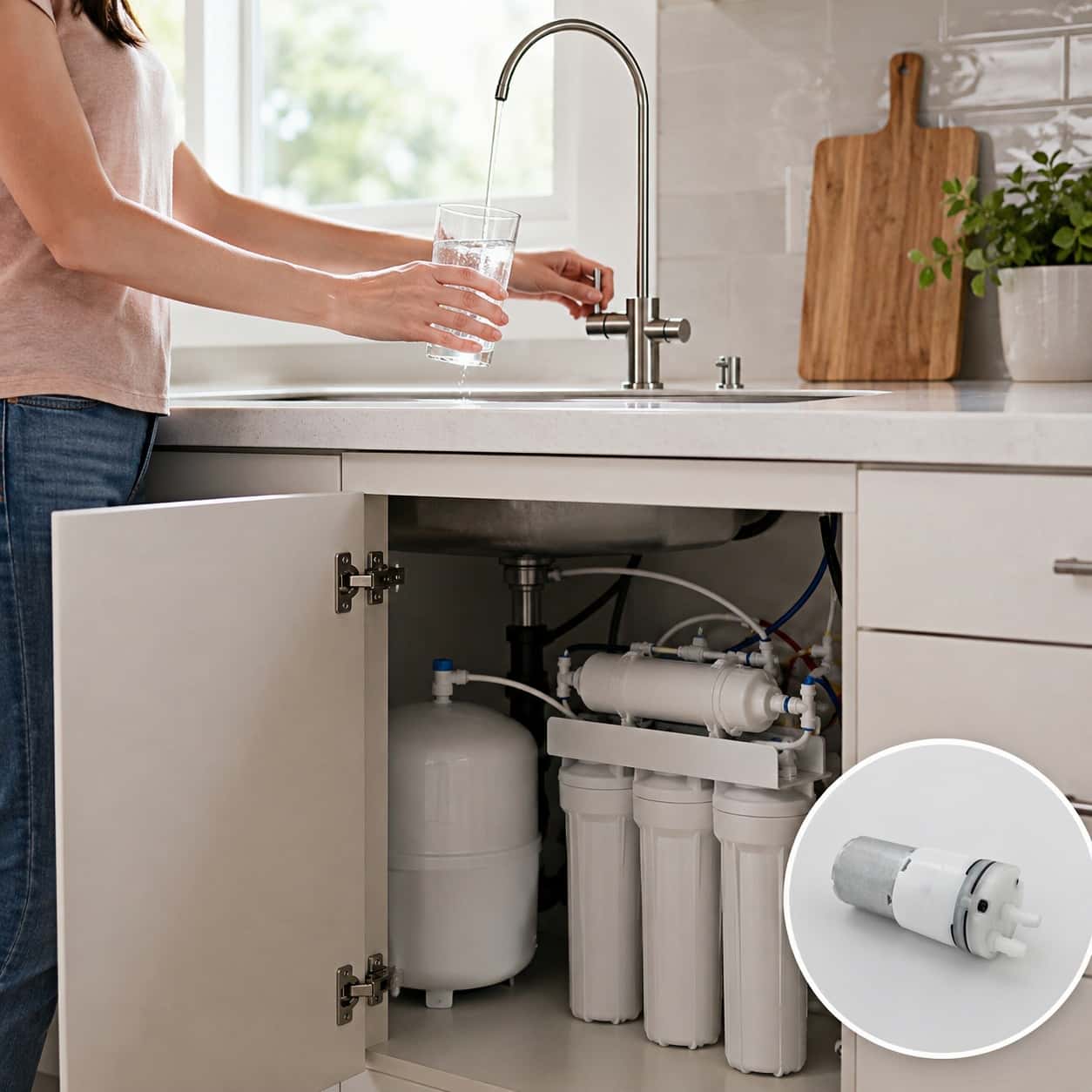

Reverse Osmosis Water Systems
RO water systems need pressure to push water through the membrane. If pressure is too low, water output may become unstable or insufficient. A 50–80 PSI micro high pressure pump is suitable for small household or commercial RO water paths, beverage equipment, and compact water filtration modules.
Compact Pressure Washing
For portable cleaning tools, vehicle cleaning modules, and equipment rinsing, the pump needs higher outlet pressure than standard water transfer pumps. A pressure range of 80–130 PSI can support compact washing applications, but it is different from household pressure washers with much higher pressure levels.
Pressurized Transfer
For long tubing, higher outlet position, or resistant water paths, normal low-pressure pumps may not provide enough delivery force. A 30–100 PSI micro pump can be used for pressurized liquid transfer, high-position water supply, and compact cooling circulation systems where pressure loss must be considered.

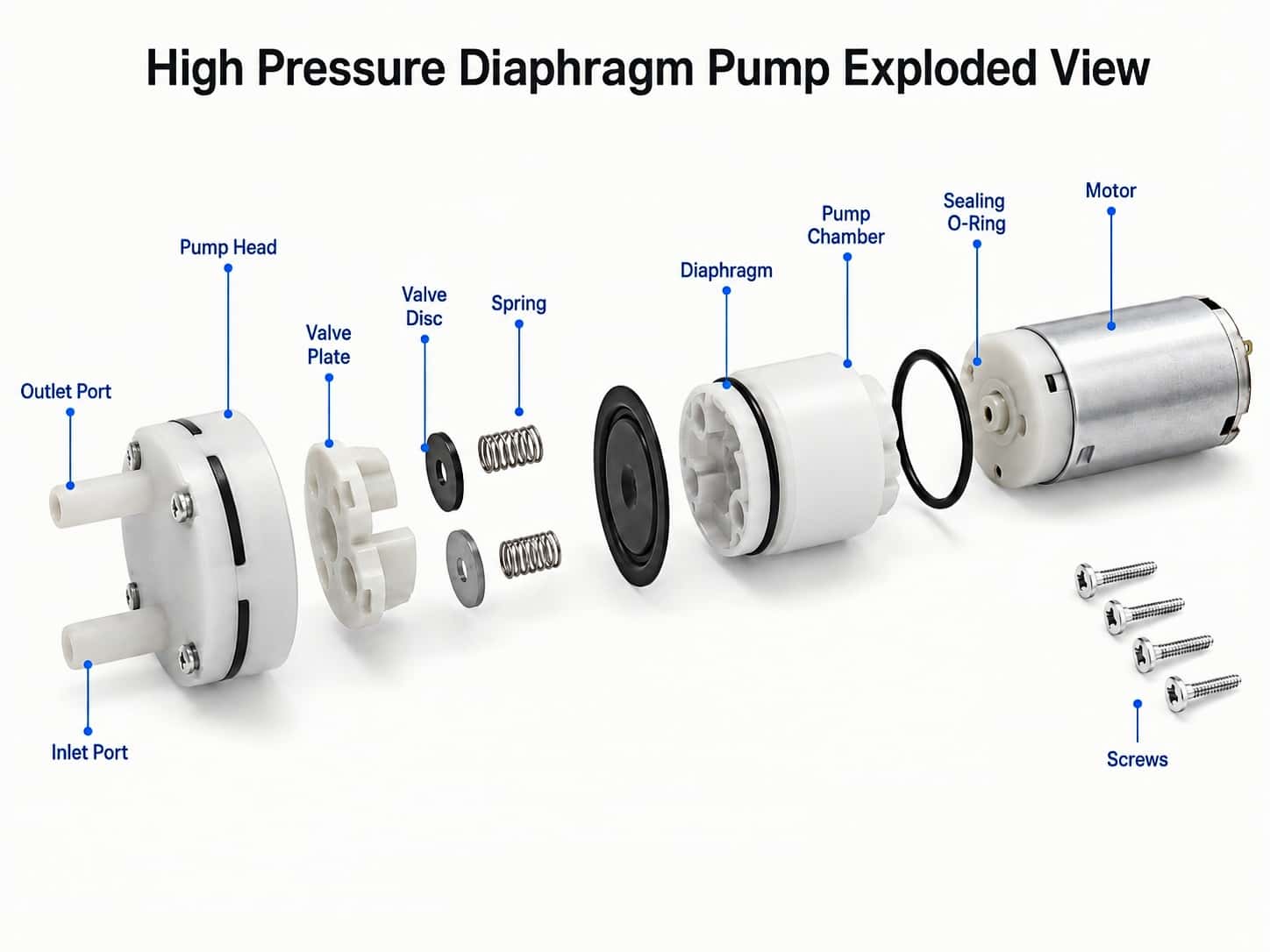

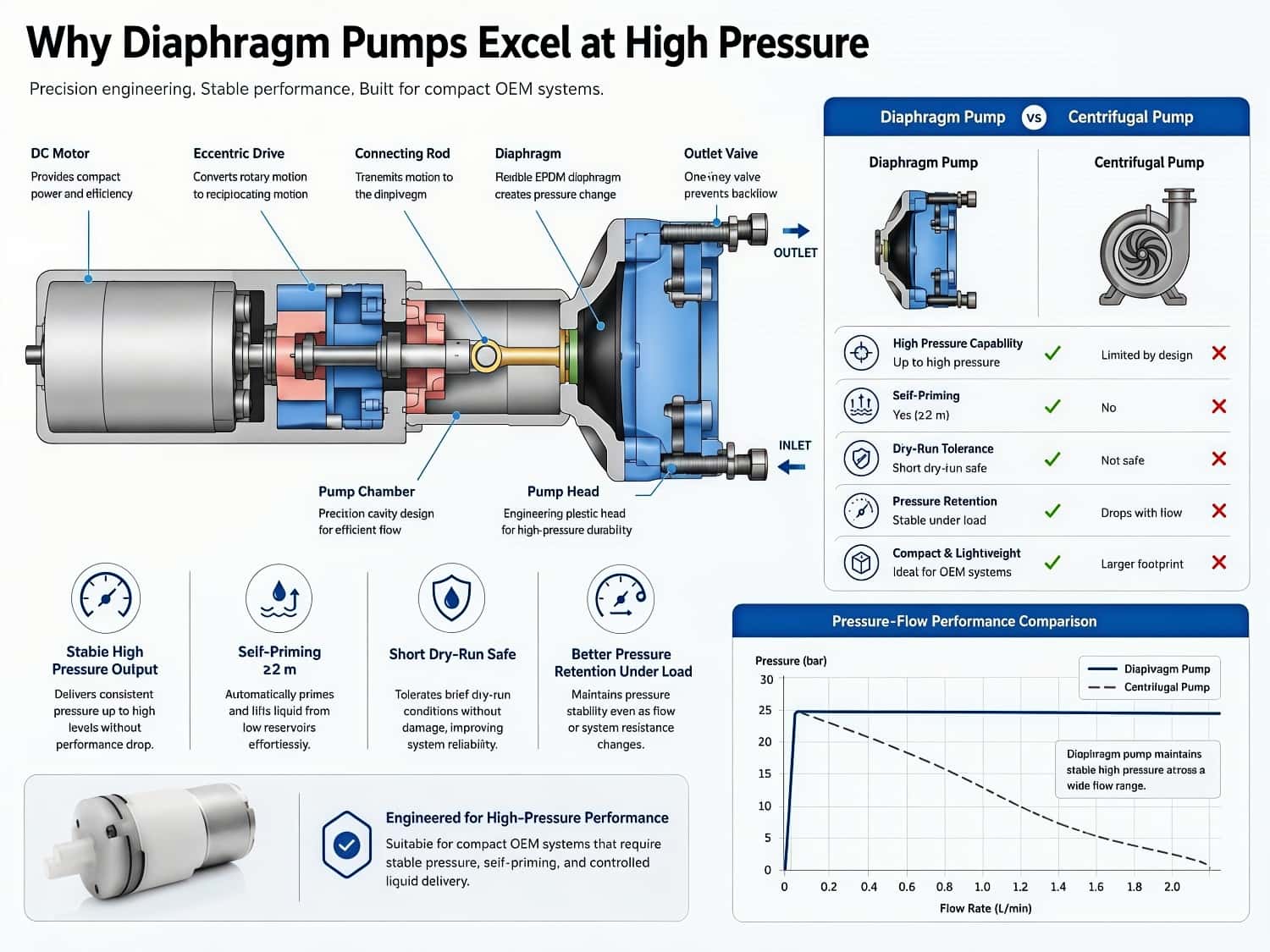

Why Diaphragm Pumps Excel at High Pressure
Consistent Flow per Stroke
Diaphragm pumps maintain a fixed volume per stroke, ensuring high-pressure stability even as flow demand changes. Centrifugal pumps may experience pressure drops at lower flow rates.
Self-Priming Capability
High-pressure diaphragm pumps can achieve suction heights ≥2 m, eliminating the need for manual priming or positive pressure supply.
Dry-Run Safety
Diaphragm pumps tolerate short-term dry running without damage, while centrifugal pumps risk seal and impeller failure.
High-Pressure Flow Performance
Diaphragm pumps produce a near-vertical pressure vs. flow curve, maintaining pressure under load. Centrifugal pumps typically show significant pressure drop as flow increases.
Core Performance Features
Pinmotor high pressure micro water pumps are designed for compact OEM liquid systems that need pressure output, self-priming, stable flow, and material matching. Pump selection should be based on pressure target, suction height, flow range, voltage, liquid type, and working cycle.

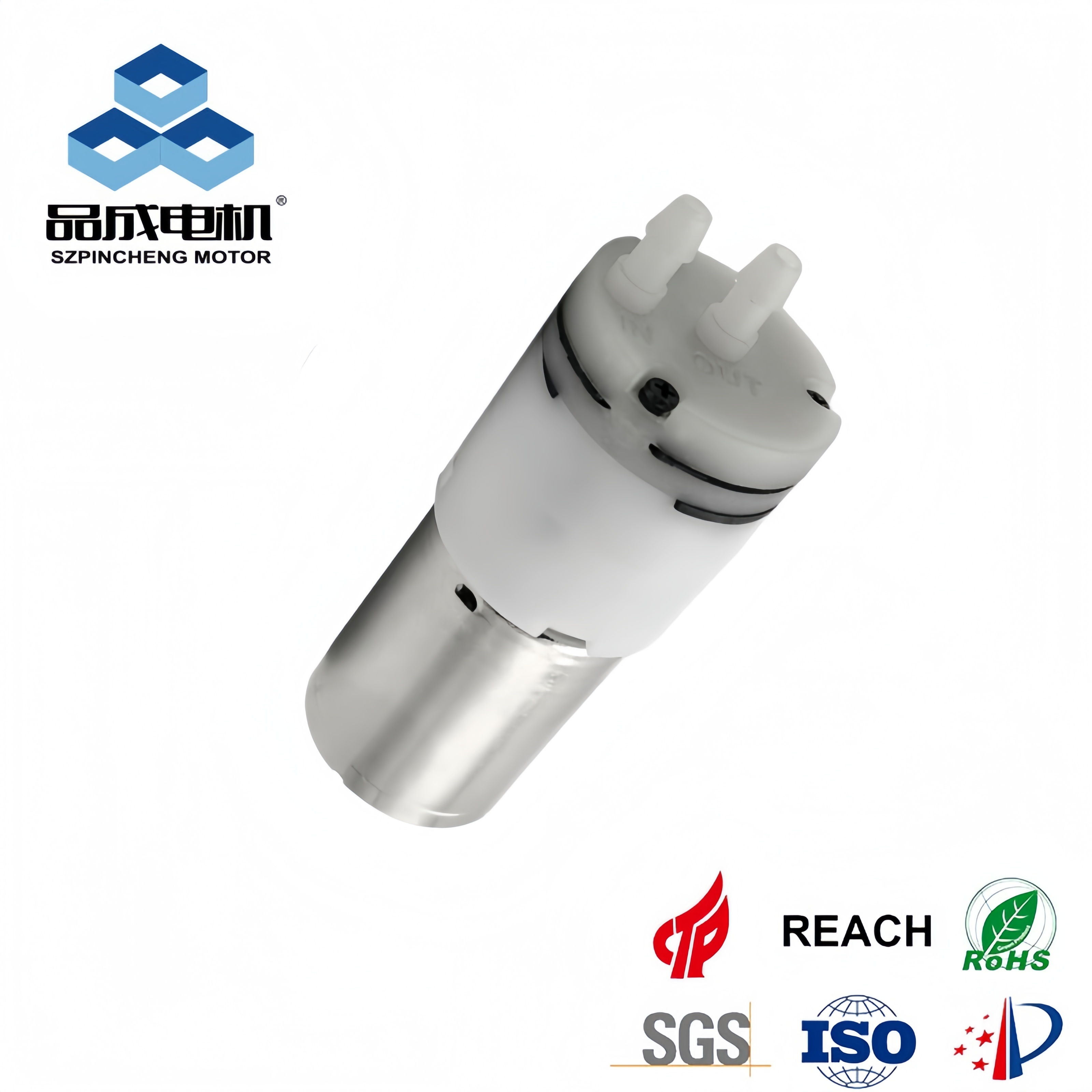

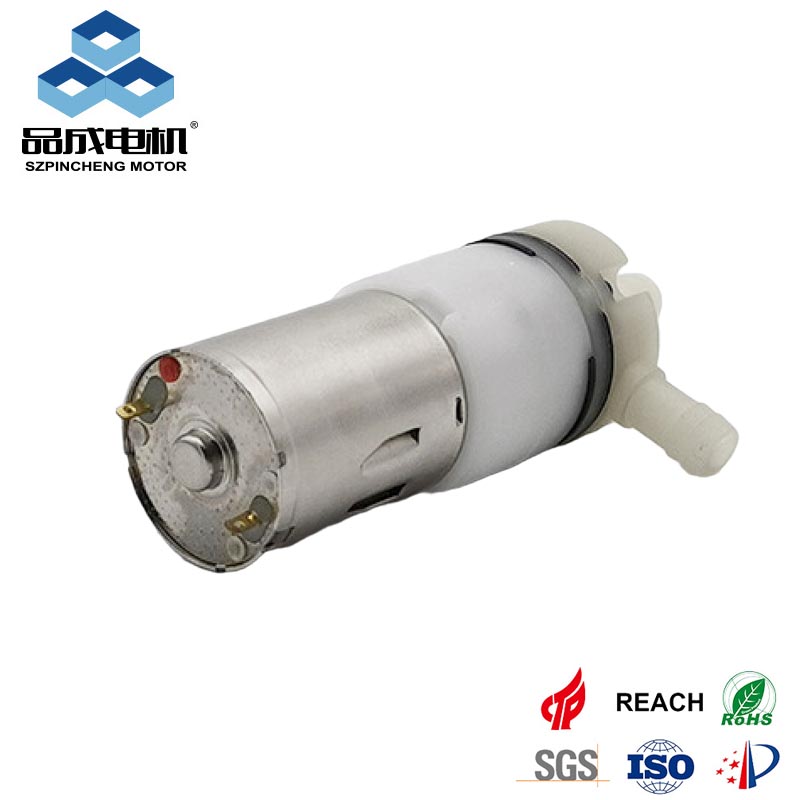

Pressure Options up to 130 PSI
Selected 370 series high pressure models can reach 30–130 PSI. The diaphragm chamber compresses liquid through repeated reciprocating movement, helping the pump maintain pressure when the water path includes a nozzle, filter, membrane, or long tubing. This makes it suitable for portable coffee machines, oral irrigators, spraying modules, and pressure-assisted liquid systems.
Suction Head from ≥2m to ≥5m
The diaphragm structure creates suction at the inlet side, so the pump can draw liquid from a lower tank or side-mounted container without manual priming. Many models support ≥2m suction head, while selected 370 series models can reach ≥5m under test conditions. Actual suction performance depends on tubing length, sealing, liquid type, and installation height.
DC Voltage Matching
Voltage options include 3V, 3.7V, 5V, 6V, 9V, 12V, and 24V, depending on the model. Voltage affects motor speed, current load, pressure output, and flow performance. For OEM projects, voltage should be matched with the device power supply, target PSI, flow demand, and working cycle.
Flow Range by Pressure Level
High pressure pumps usually trade part of the flow for stronger pressure output. Selected 370 series models provide 0.3–0.8 LPM or 0.3–1.2 LPM, depending on pump head structure and outlet design. Lower-pressure models can provide higher flow when the application focuses on water transfer rather than pressure boosting.
Material Matching by Liquid Type
Diaphragm, valve, pump head, and seal materials should be selected according to the liquid type. EPDM is commonly used for water-based media, while PTFE / FKM options can be reviewed for weak acid, weak alkali, alcohol-containing liquid, cleaning liquid, or solvent-related applications. Material confirmation and sample testing are recommended before mass production.
Life Test by Product Series
Pump life varies by motor type, pressure load, liquid type, and duty cycle. Different models support ≥100h, ≥200h, or ≥500h continuous operation under specified test conditions. For long-cycle use, the pump should be tested in the customer’s actual device with real tubing, voltage, liquid, and working program.
Need Help Matching the Right Pump to Your Application?
Share your pressure target, flow requirement, liquid type, and tubing layout. Our engineers can recommend a suitable micro high pressure pump for testing and OEM production.
OEM & Customization Options
Pinmotor supports high pressure micro water pump customization for OEM projects that need specific pressure, voltage, switch logic, connector, material, and installation requirements.
| Custom Item | Available Options |
|---|---|
| Pressure | 30 / 45 / 60 / 80 / 100 / 130 PSI project matching |
| Voltage | 6V / 12V / 24V DC and project-based options |
| Flow Rate | Matched by nozzle, tubing, and target output |
| Switch | Manual switch / automatic pressure switch / external control |
| Connector | Hose barb / threaded port / quick-fit / custom fitting |
| Materials | Diaphragm, valve, pump head, seal selected by liquid type |
| Sealing | Matched by pressure level and water path design |
| Branding | Logo, label, packaging, private label |
| Testing | Pressure, flow, suction, leakage, current, noise, appearance |
Requirement Review
Pressure Matching
Sample Testing
Water Path Adjustment
Bulk Production
Why Choose Pinmotor for High Pressure Micro Pumps?
Pinmotor supports OEM buyers that need compact pressure pump solutions, sample testing, parameter matching, and stable batch supply for device-level integration.
Pressure-Oriented Pump Matching
For high pressure projects, pump selection is reviewed by PSI target, nozzle resistance, tubing length, suction height, flow demand, and working cycle. This helps avoid under-pressure, unstable spray, leakage, or overloading.
Real Device Sample Testing
Samples can be tested inside the customer’s real device before mass production. This helps confirm pressure output, water path sealing, current, noise, heating, and working stability under actual conditions.
Stable Production for OEM Orders
Pinmotor supports both sample-stage development and long-term batch supply. Production planning can be matched to repeat orders, customized parts, packaging needs, and shipment schedules.
Quality and Compliance Support
Project support can include ISO 9001, RoHS, REACH, CE, and EMC-related documents according to the customer’s target market and application requirements.
Application-Based Customization
Pump design can be adjusted by pressure level, voltage, connector, diaphragm material, switch type, wire length, installation position, and branding requirements.
FAQ About High-Pressure Micro Water Pump
What is the maximum pressure a high pressure micro water pump can achieve?
Pinmotor high pressure micro water pump options can be matched up to about 130 PSI, depending on model, voltage, water path, and working conditions.
Can a high pressure micro water pump be used for pressure washing?
Yes, it can be used for compact cleaning, small equipment washing, or portable rinsing systems. It is not the same as a household pressure washer, which usually works at a much higher pressure level.
What does automatic pressure switch mean?
An automatic pressure switch allows the pump to stop when the water path reaches a set pressure and restart when pressure drops. It helps reduce unnecessary operation and protects the pump system.
How do I choose between 30 PSI and 130 PSI?
Choose 30–70 PSI for spraying, RO, beverage systems, and general pressurized delivery. Choose 80–130 PSI for compact cleaning, pressure boosting, small nozzles, or higher-resistance water paths.
Can a high pressure micro pump handle hot water?
It depends on the diaphragm, valve, pump head, seal material, and working temperature. Hot water projects should be reviewed and tested before mass production.
What is the difference between this pump and a household pressure washer?
A high pressure micro water pump is designed for compact OEM devices and usually works within 30–130 PSI. A household pressure washer is a larger cleaning machine and may exceed 2000 PSI. They are different product categories.
Need a High Pressure Micro Water Pump for Your OEM Device?
Send us your target PSI, voltage, flow rate, nozzle size, tubing length, liquid type, switch requirement, and working cycle. Pinmotor can help recommend a suitable pump for sample testing before mass production.
